10Mbps UltraWideBand FM Radio on 6cm (5.7 GHz) - S53MV

Schematics and layouts about 5.7GHz FM radio will be shown.

This radio transmit with 35mW (+15dBm) output power, and together with its simplified RF frontend permit to established 10 Km links, using small 20dBi horn antennas, or 100km usign 30dBi 85cm dish antennas.
Due to its simplicity and absolutely non-critical FM demodulator, it is very suitable to be installed on the antenna focus: no matter about temperature drift.

You can use this radio with 10Mbps TNC, described at http://www.ir3ip.net/s53mv/tnc10mbps.

All images below can be enlarged just clicking on them.

Also, you can hear my relation, in MP3 format, about 10Mbps TNC and 5.7GHz UWBFM radio.

click to enlarge

click to enlarge

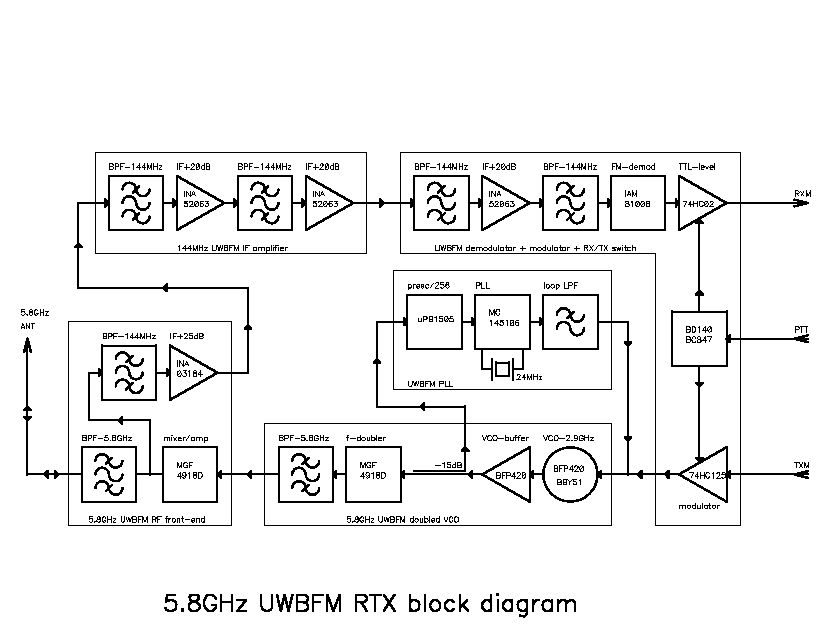

Block diagram

Block diagram:
click to enlarge

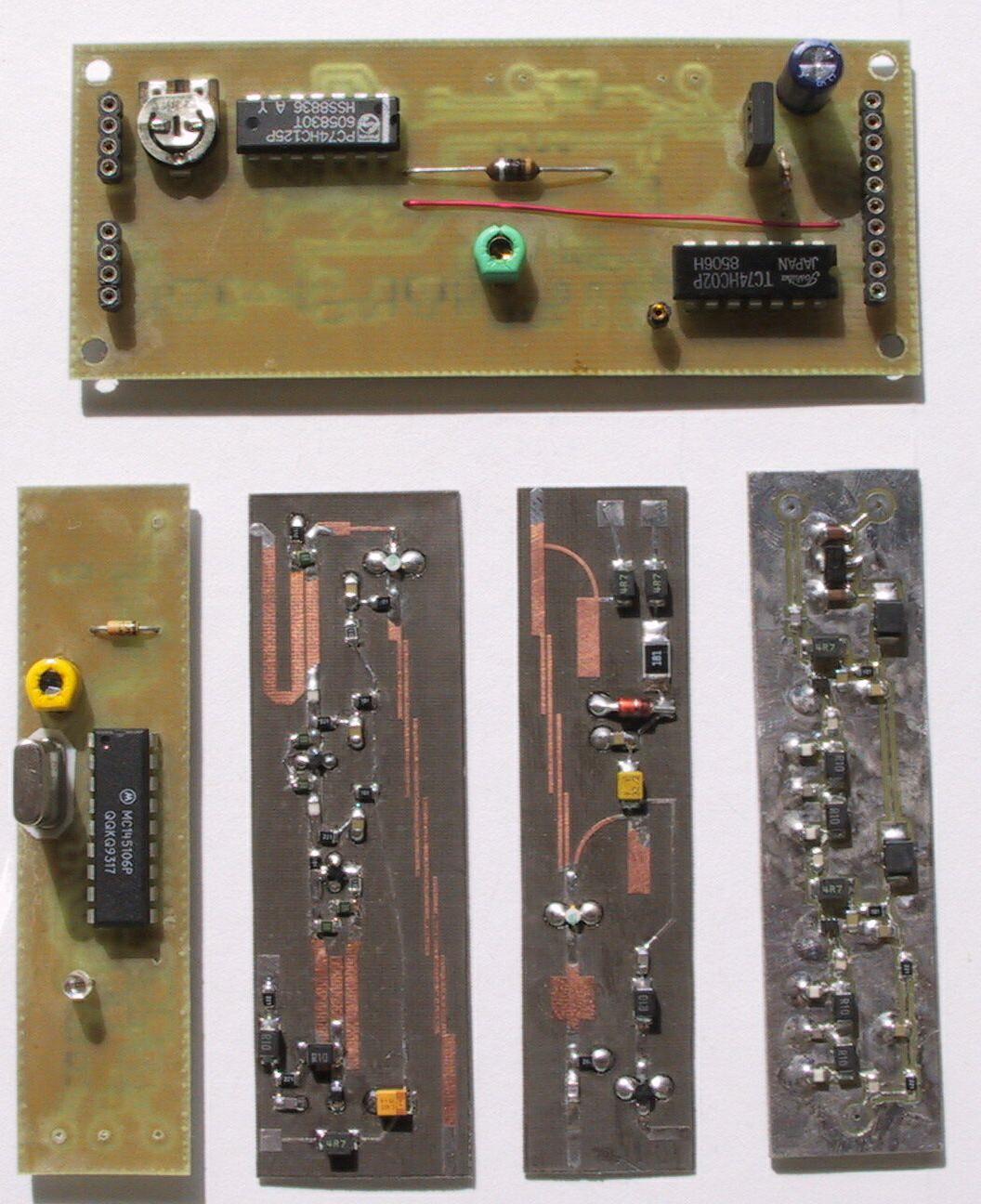

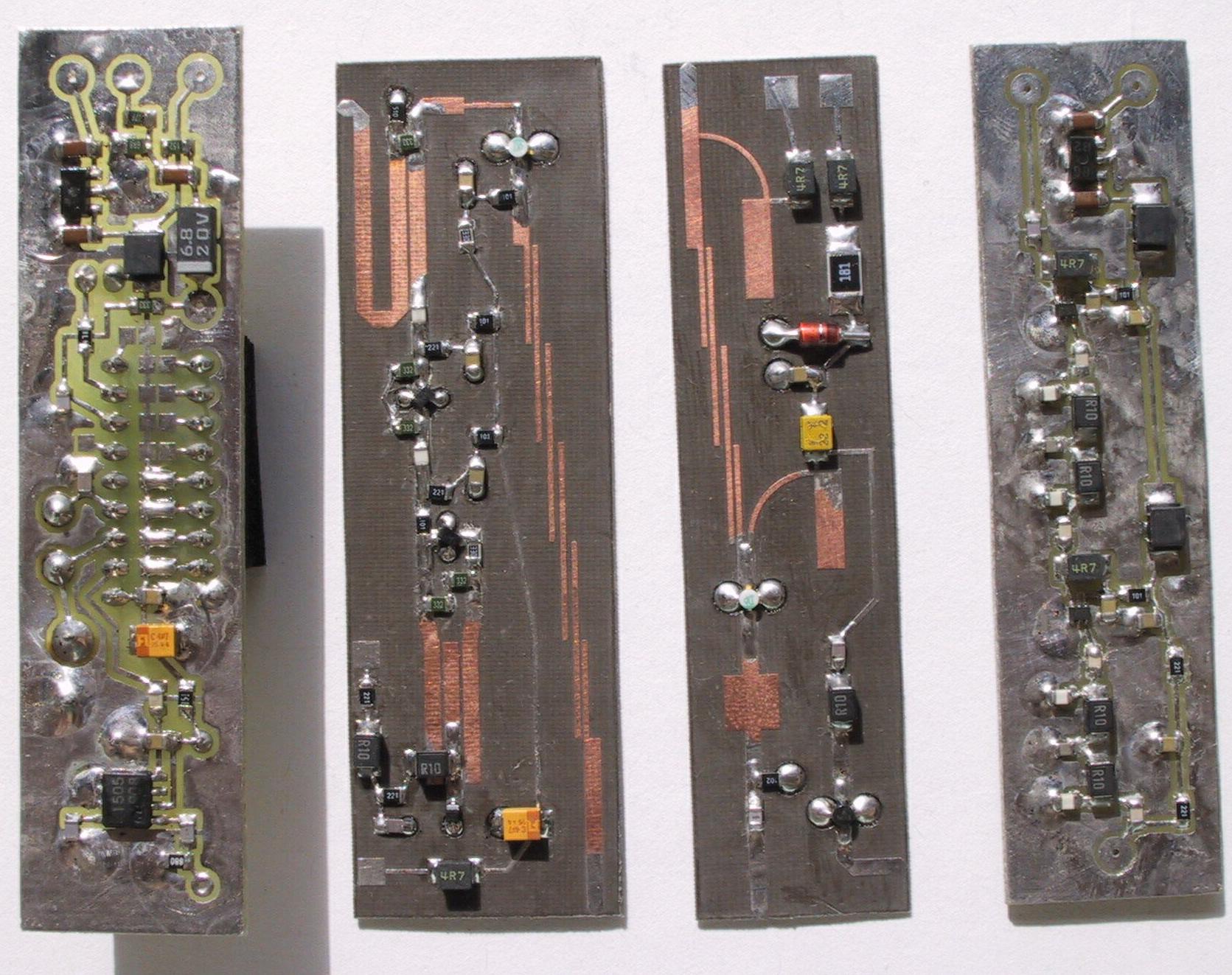

View of component layer:
click to enlarge

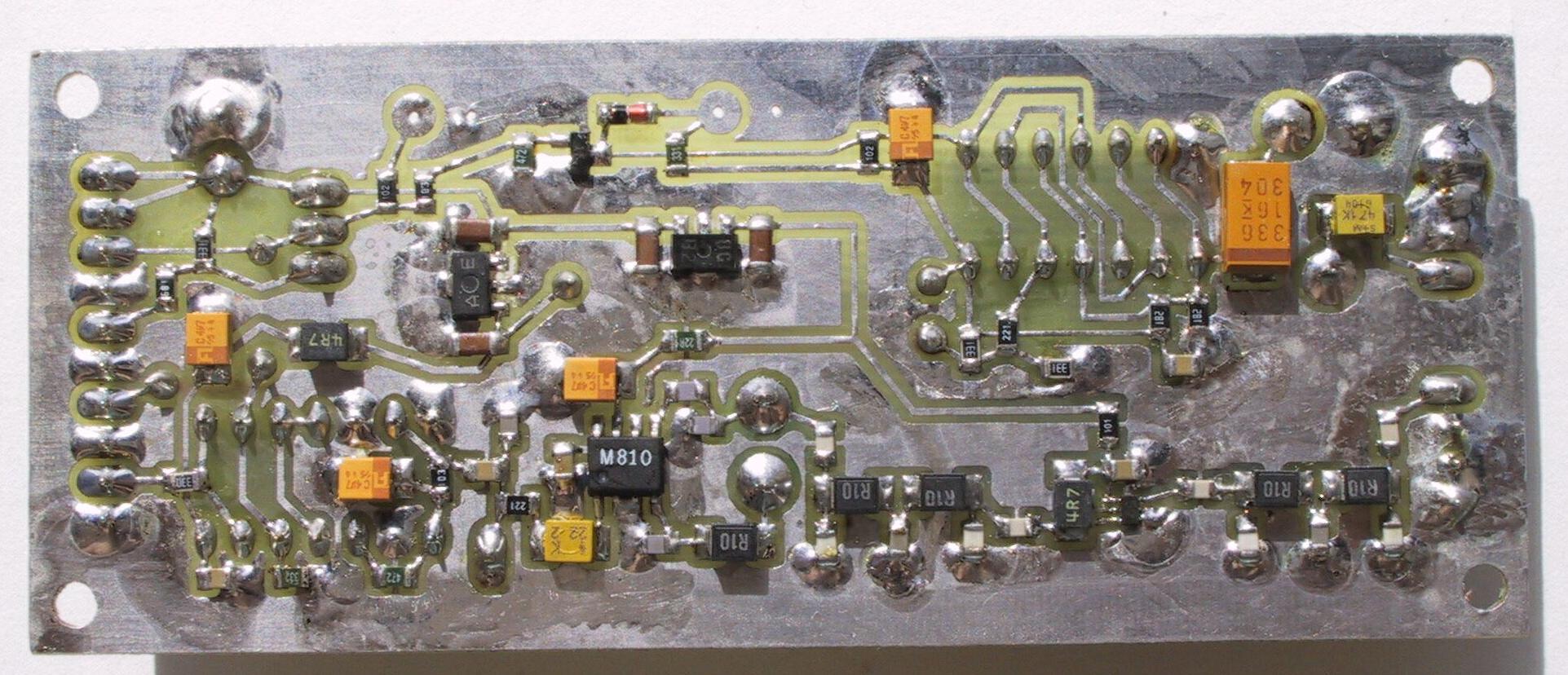

View of solder layer:
click to enlarge

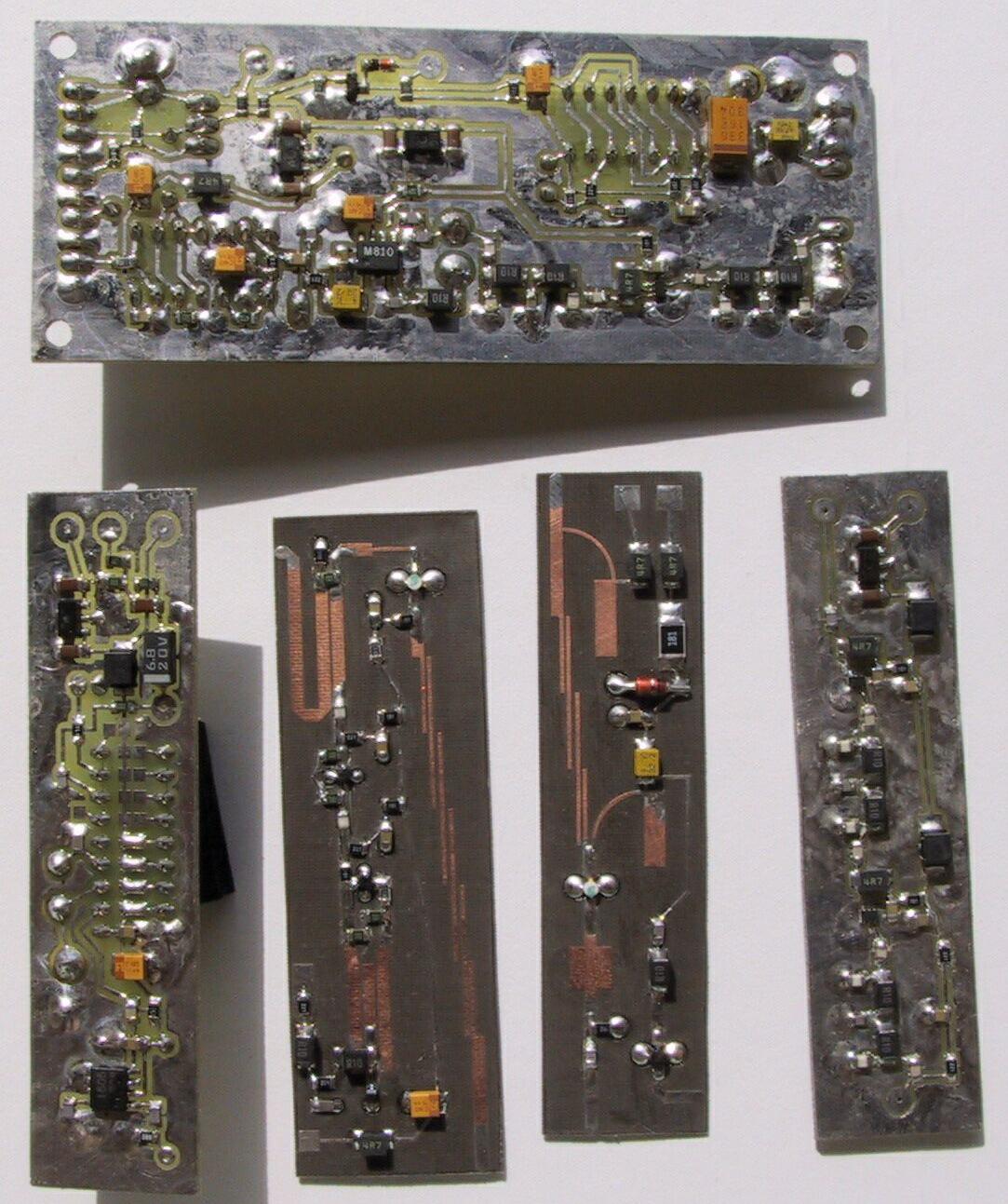

Wider view:
click to enlarge

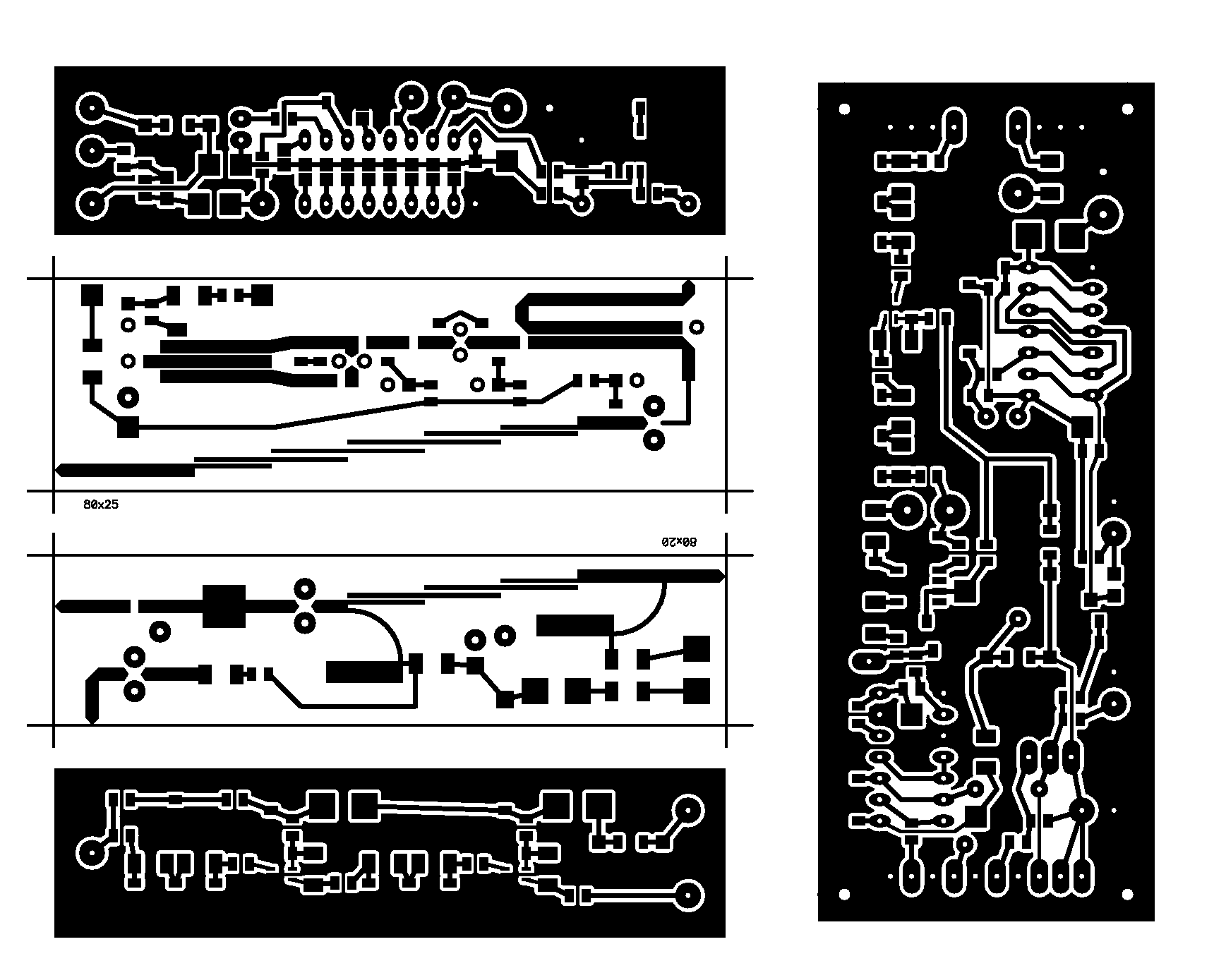

PCB masters:
click to enlarge

PCB gerber:
PCB component layer

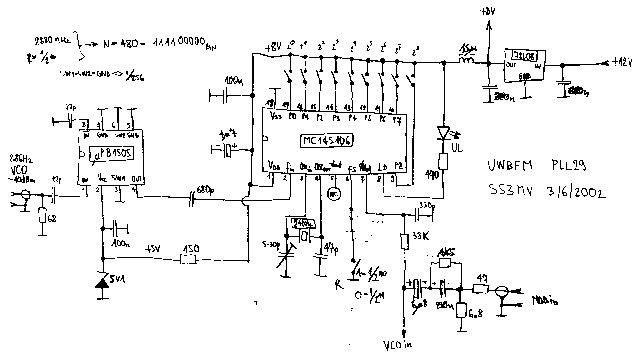

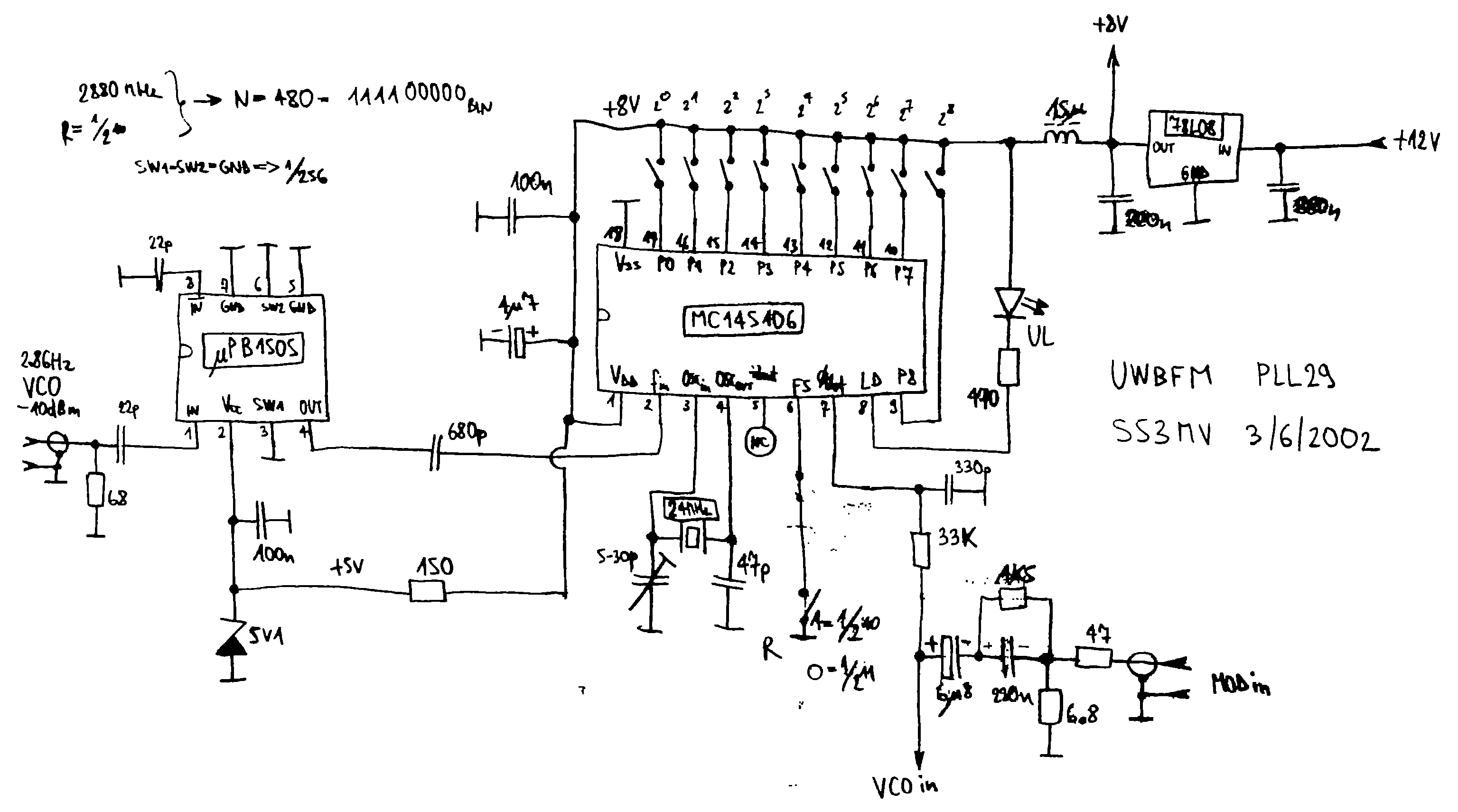

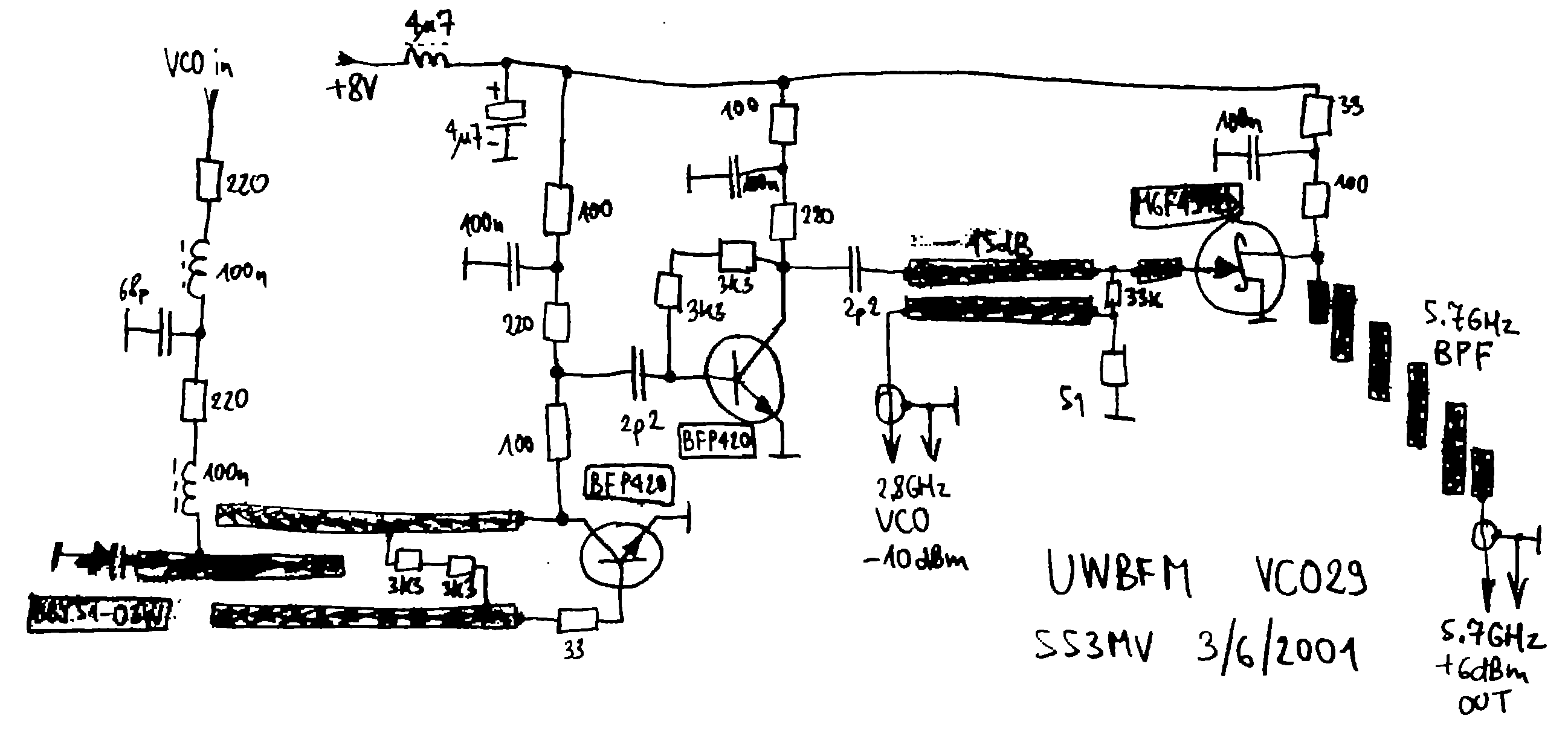

2.9GHz VCO with PLL, and dubler

click to enlarge

click to enlarge

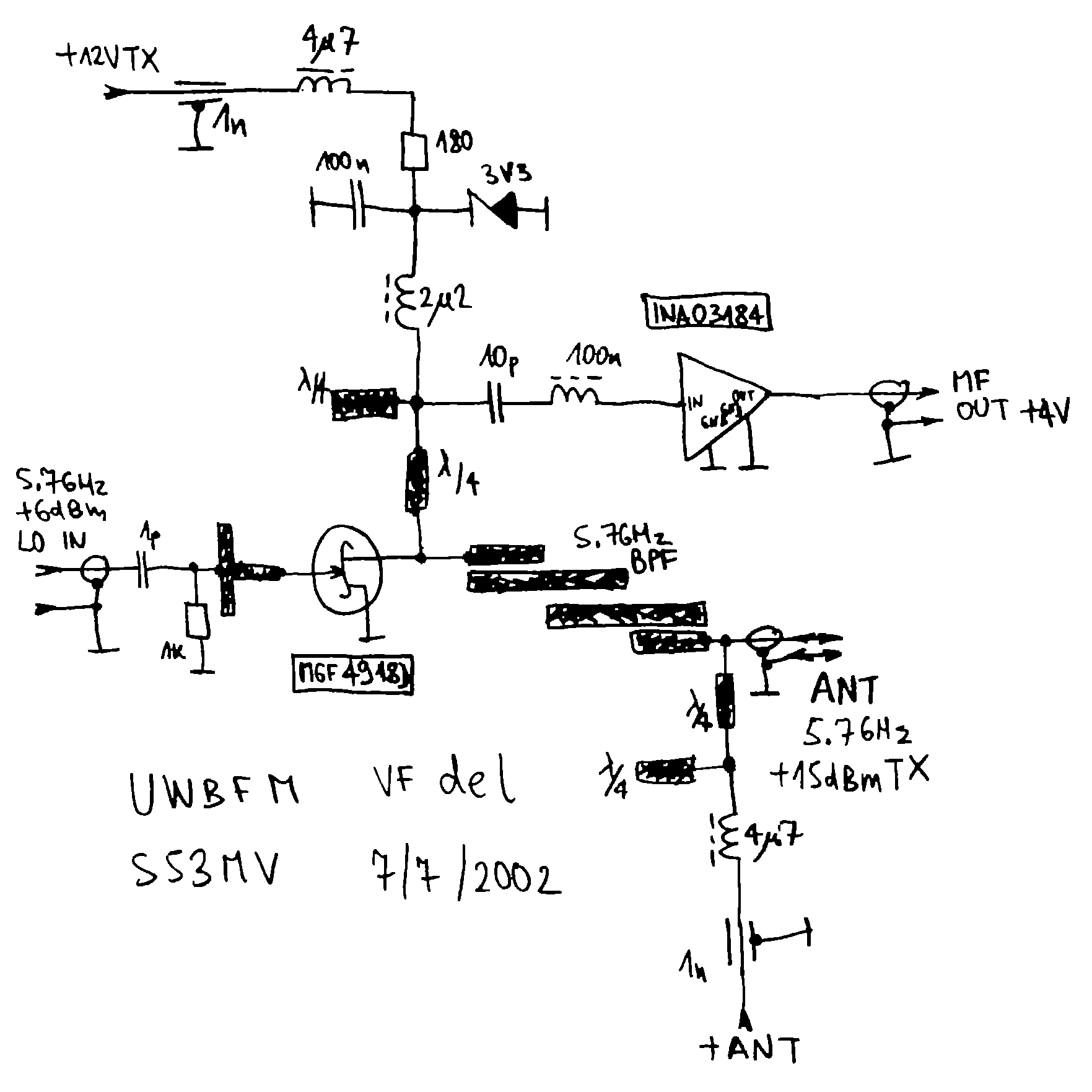

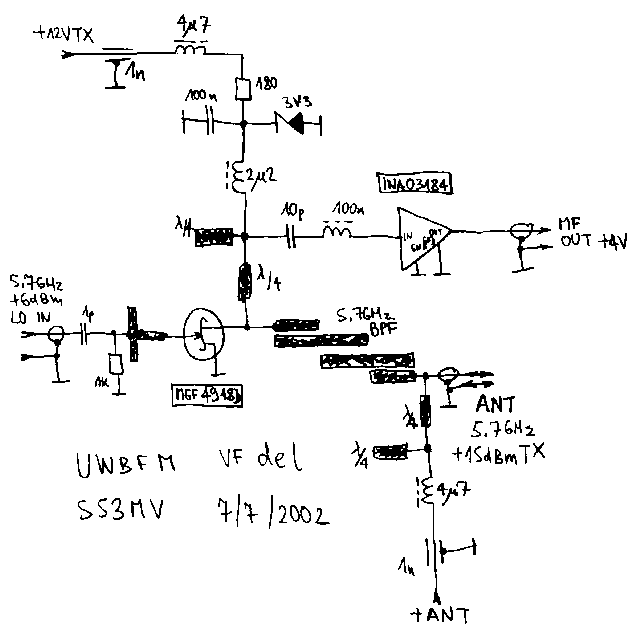

5.7GHz RF front-end

click to enlarge

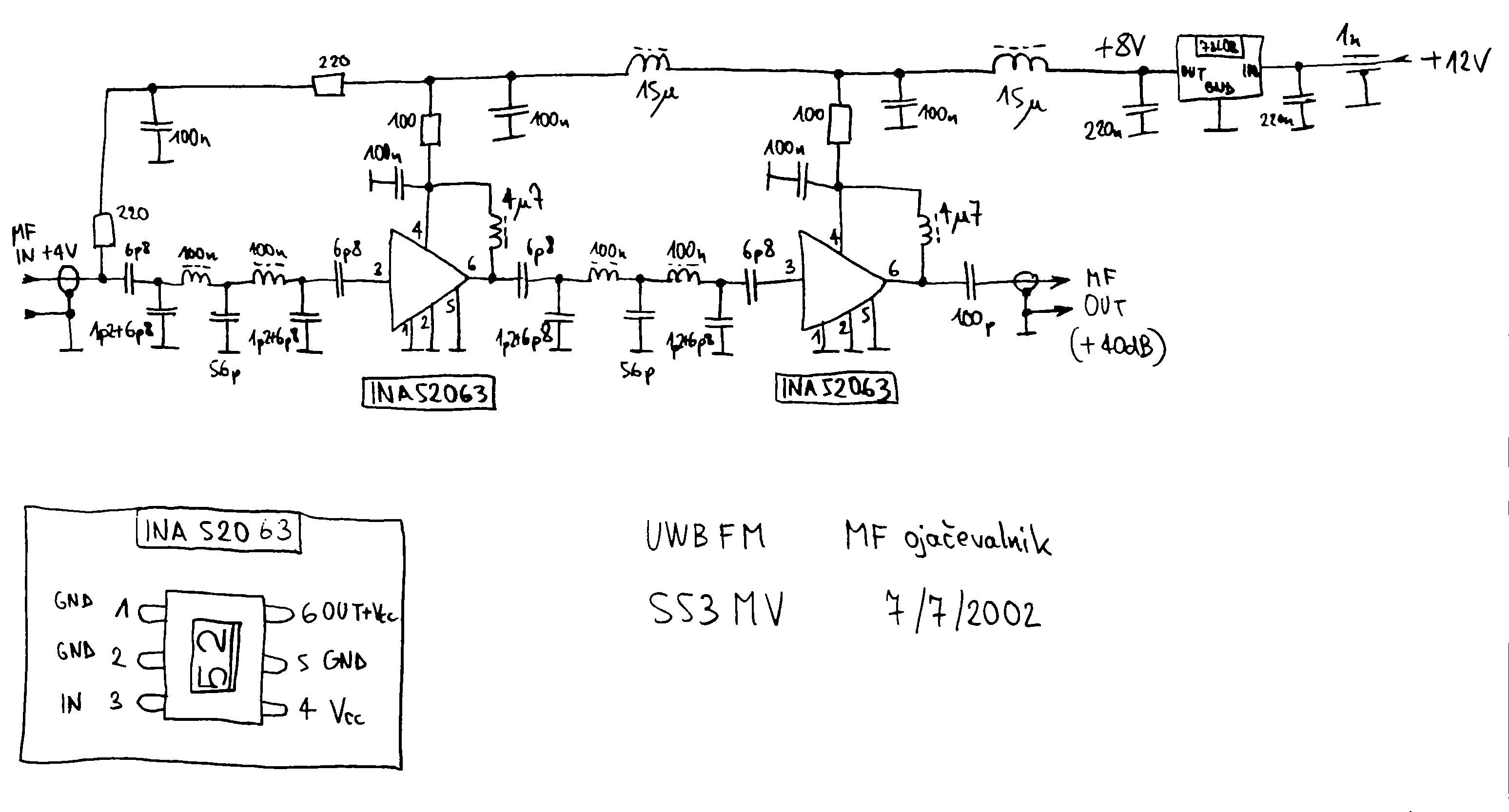

144MHz IF receiver

click to enlarge

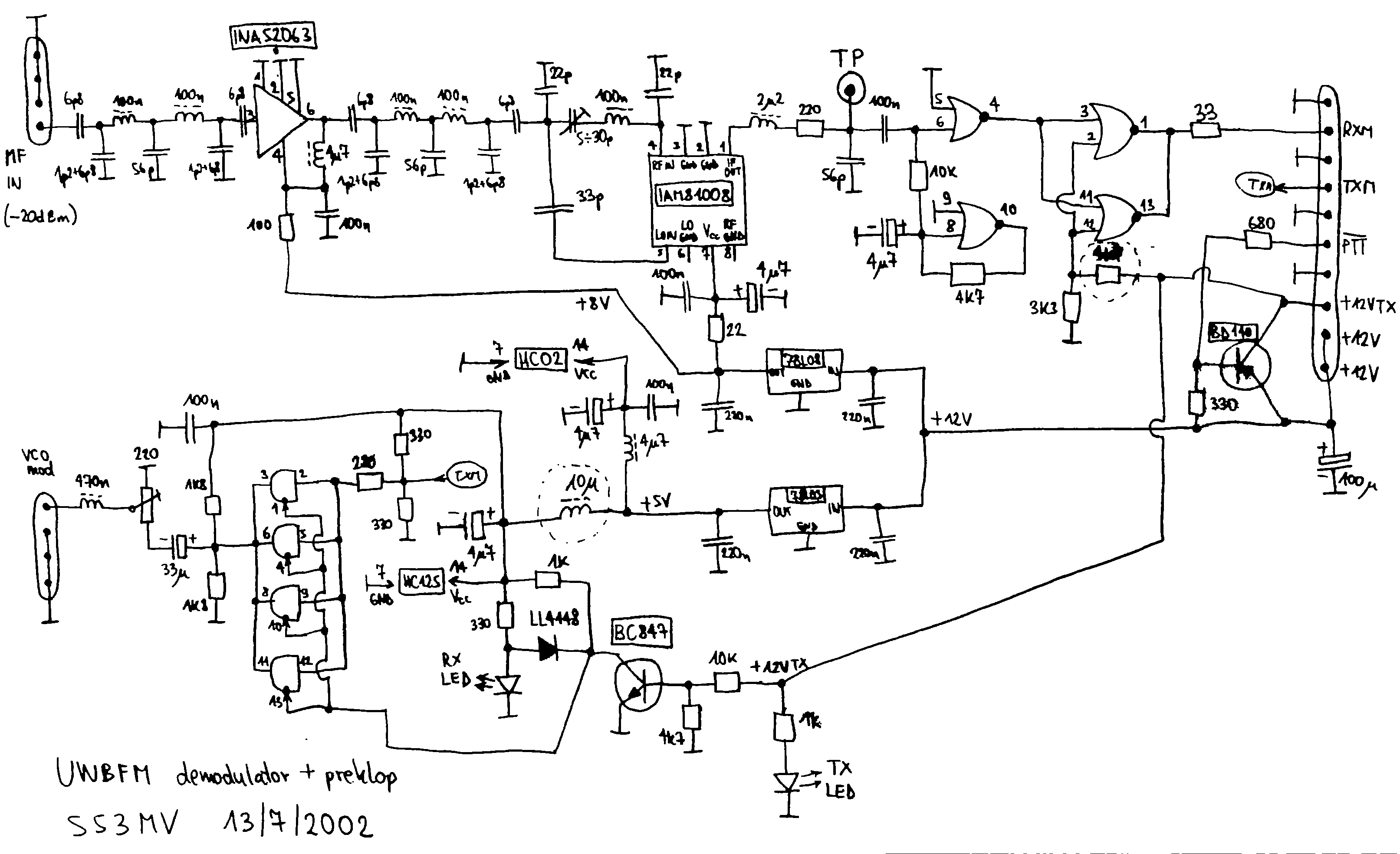

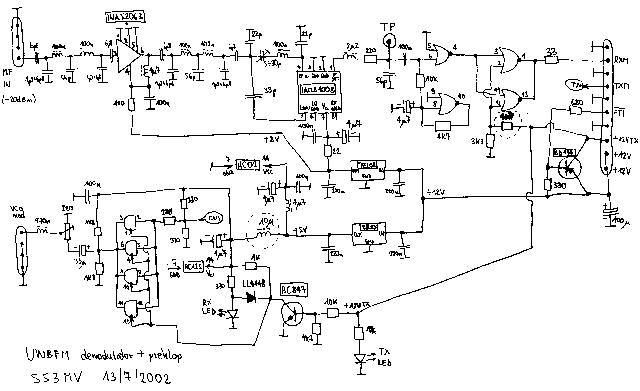

FM demodulator

click to enlarge

click to enlarge

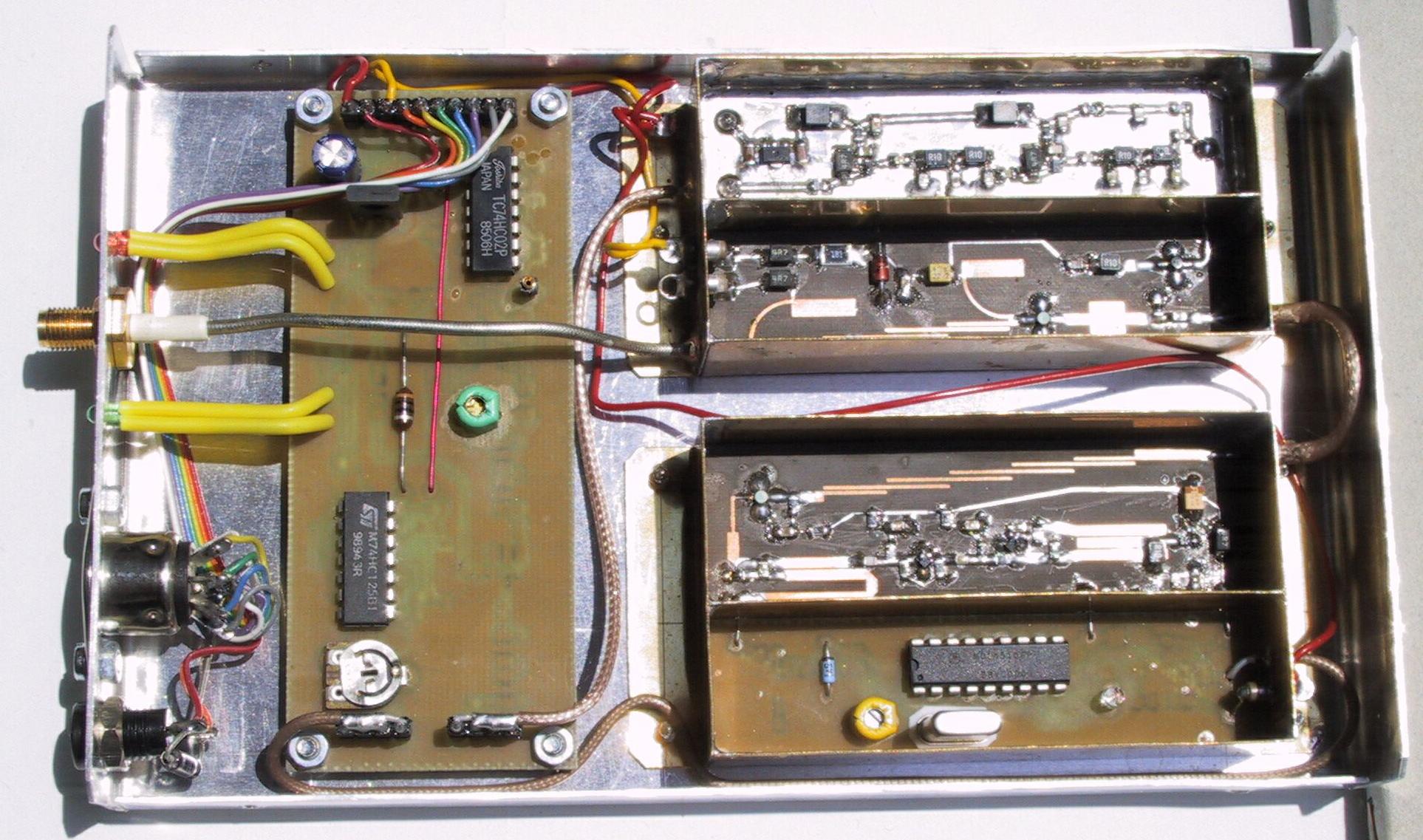

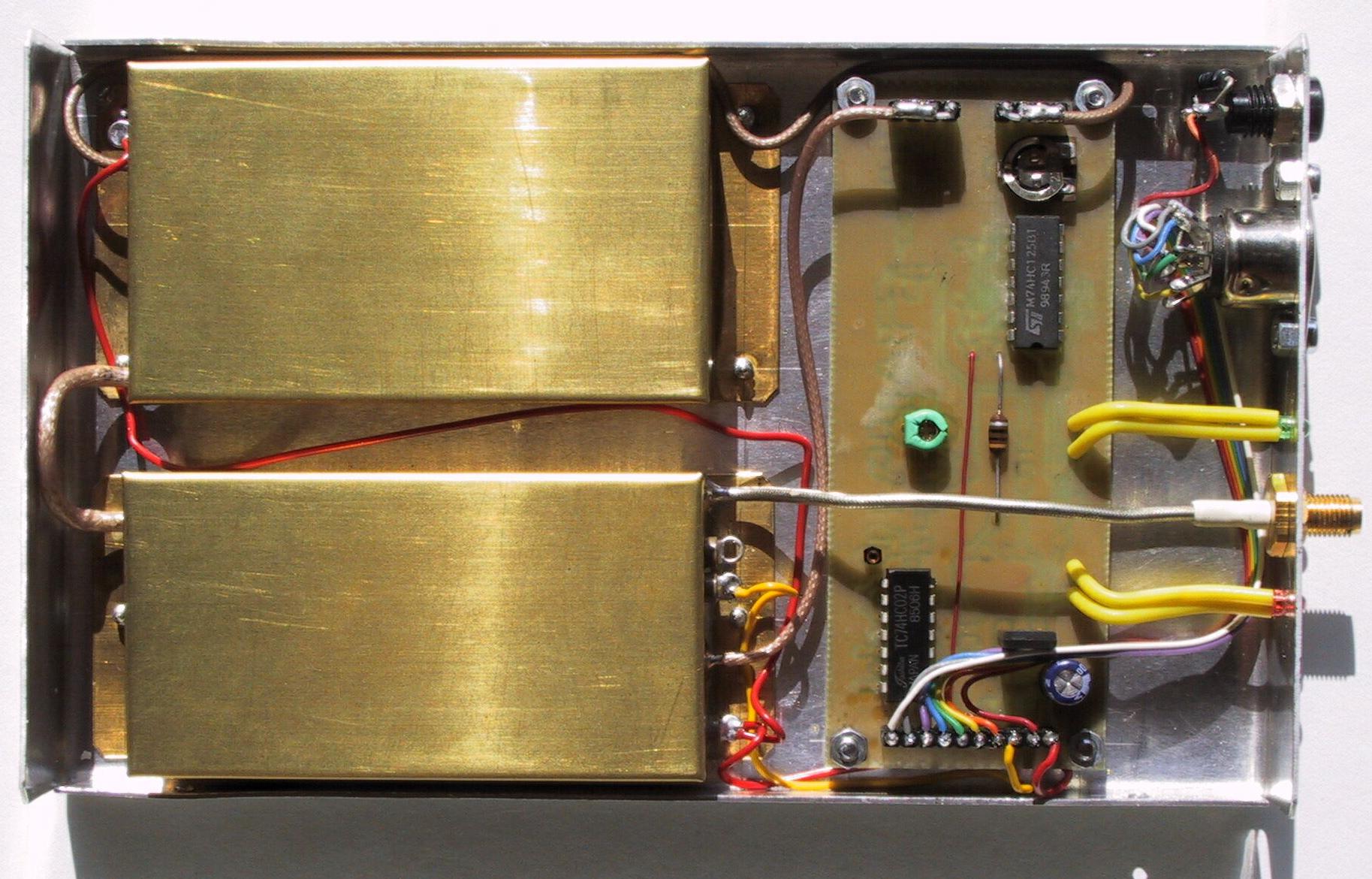

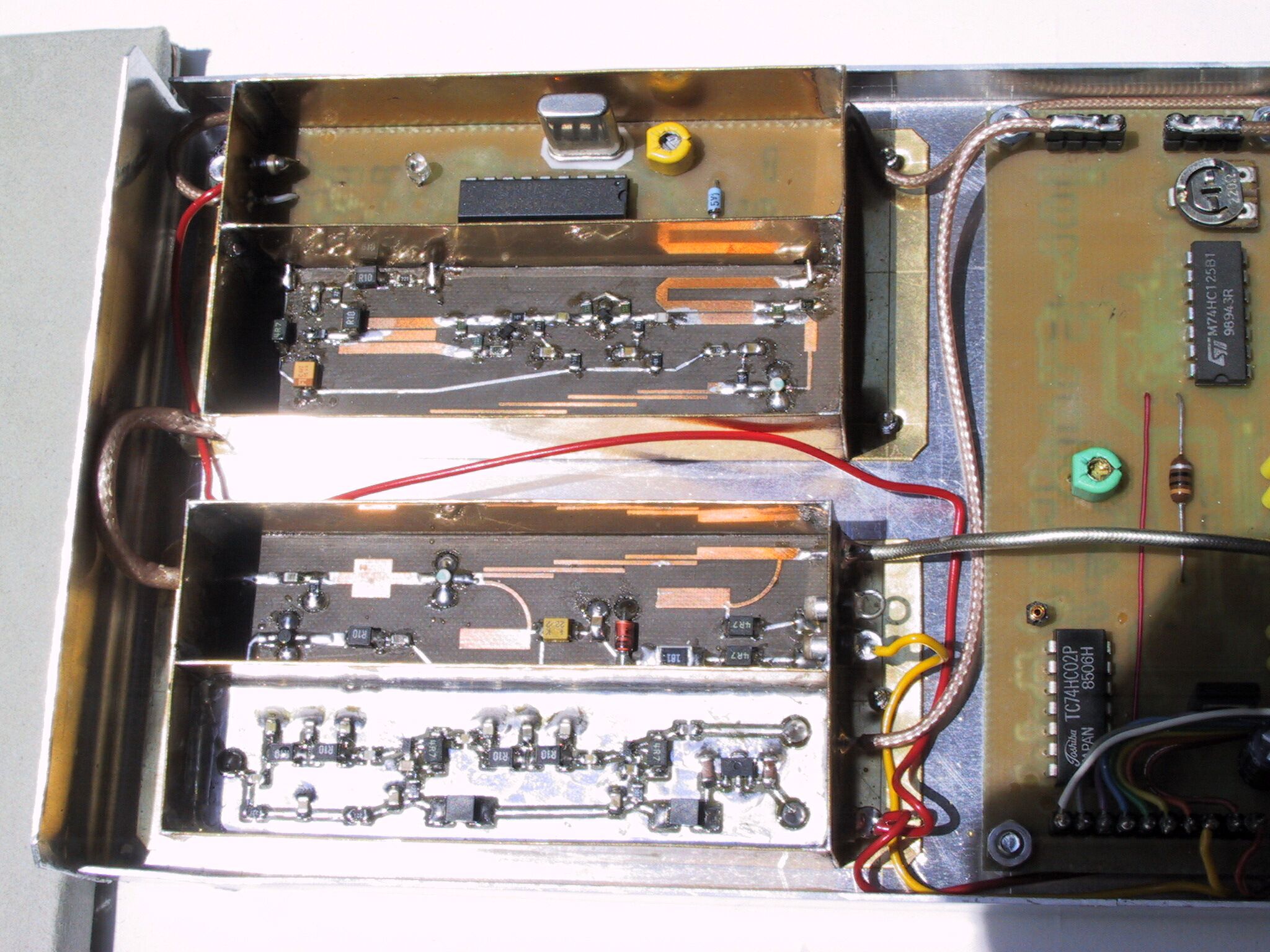

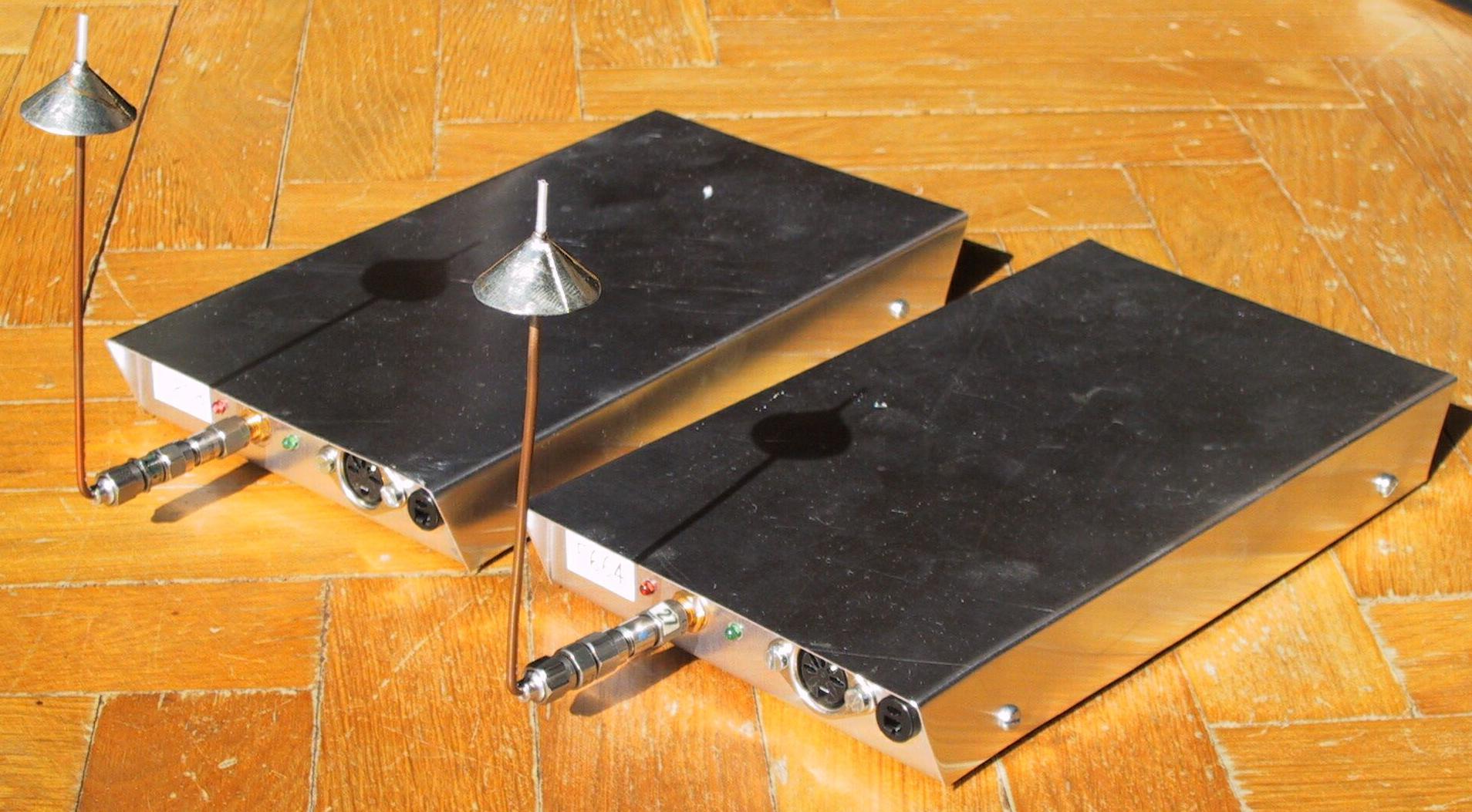

View of complete radio

click to enlarge

click to enlarge
